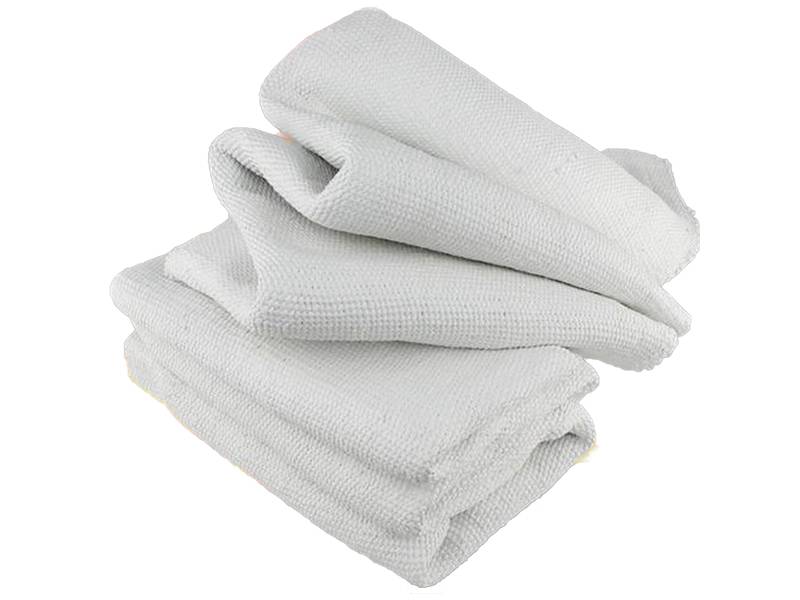

Ceramic Ropes/Cloth/Tapes

Our firm holds an outstanding position in the market as the manufacturer, supplier and exporter of Ceramic Fiber Rope. These products are made from an exceptionally stable fiber material that is soft, non-irritating and non-hazardous in nature. Extensively used in very high temperature static sealing duties or slow rotary applications, these products replaces ceramic yarn packing and radiation seals in BOS plant. Known for their premium quality, these products are also used as kiln packing, stem gland sealing on valves handling very high temperature gases and door seals for annealing furnaces at steelworks and protective surfaces on pottery kiln cars. Ceramic Fiber Rope can resist high temperatures hence, it is used for thermal insulation & heat resistant duties where flexibility & resilience are required.
Features:

Non-hazardous heat resistant fiber construction

• 1000°C for constant duties, with excursions to 1100°C
• Competitively priced alternative to normal ceramic fiber packings
• Far better value for money than other non-hazardous high temperature materials, such as those made of pure silica fiber

• Good chemical compatibility

Application Areas:

• Ceramic packings & vessel lid seals on secondary steel making plant

• • Braided insulation sleeves, webbing tapes, ladder tapes, twisted ropes, lagging ropes, blankets and paper and woven cloth

Ceramic Fiber Rope, Tape, Cloth contains no organic agents or processing additives. It therefore retains its physical and chemical properties at very high temperatures and does not decompose into hazardous substances, as happens with many normal ceramics.

• Service capabilities – static and slow rotary duties only
• Maximum temperature (constant): +1000°C
• Maximum temperature (intermittent): +1100°C
• Minimum working temperature: -50°C

How supplied:
Hi-Temp is available as densely braided compression packings – square, round and rectangular – in sections from 5mm to 200mm, and in any length. Full fitting instructions are included.

The Ceramic Fiber Braided Round & Square Ropes are manufactured from superior quality Ceramic fiber yarn, braided cover on the cover to form a solid packing. It is suitable for caulking and general thermal insulation application, with properties of low thermal conductivity. The yarn is reinforced with ASTM grade E-Glass Filament & can withstand very high temperature. This packing is available in various sizes from 6mm to 100mm or above on request.

Twisted Ropes are made from Ceramic Fiber yarn and reinforced with Fiberglass/SS wire. Braided ropes are made from ceramic fiber enclosed in a Glass fiber braid or SS wire braid to give excellent handling strength.

The above ropes are light weight, resilient, high temperature resistant and possess good chemical stability. Burning of the 20% organic carrier contained by the sleeve happens at 400°C leading to smoke and out gassing.
