Champion Gasket
We Jain Mill Stores are proud to introduce ourself as an Authorized Channel Partners for “CHAMPION” Gasket and gland packing.

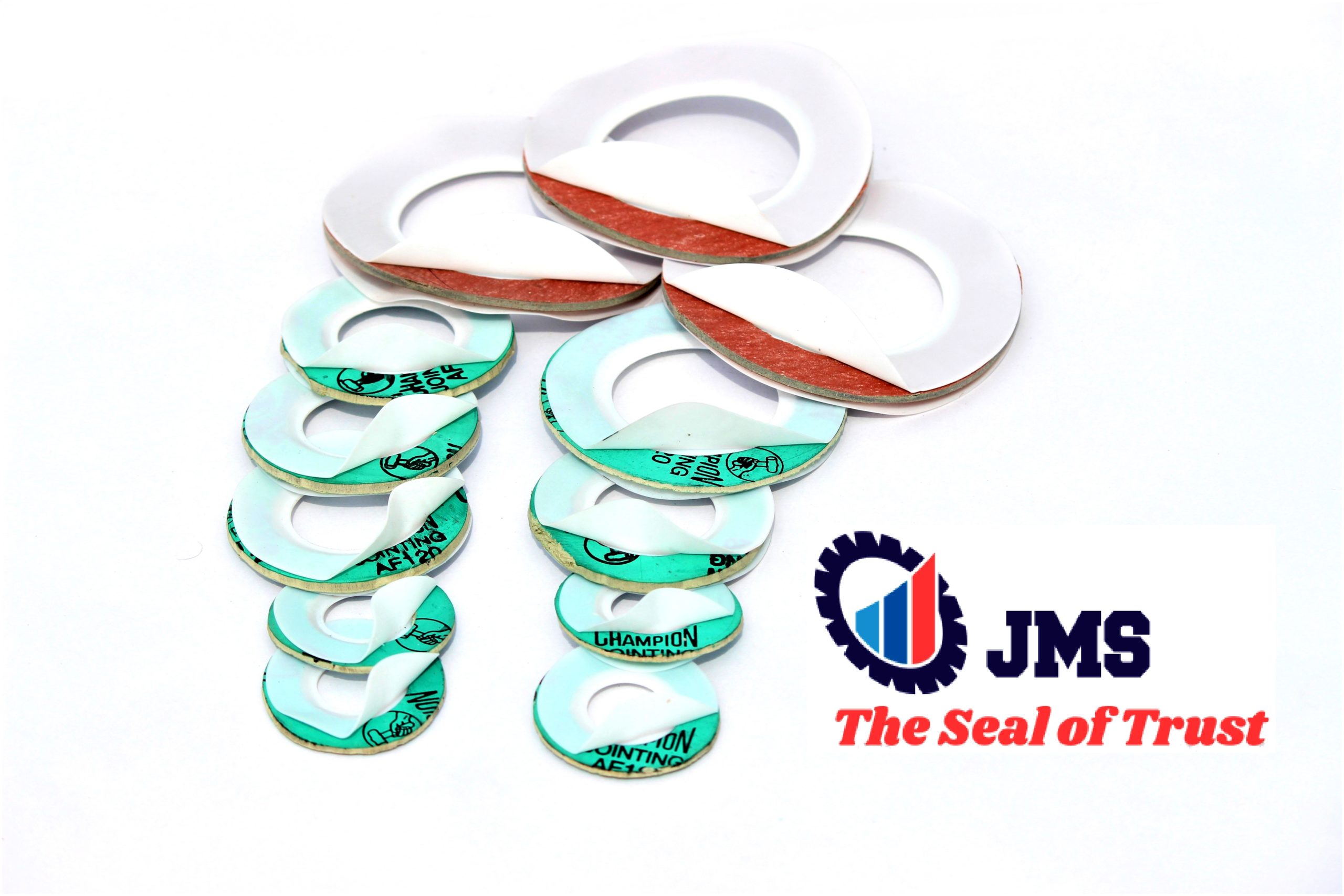

We are Manufacturers/ Suppliers of high quality PTFE Cut Gasket, Spiral Wound Gasket, PTFE Envelope Gasket, Champion Gasket using CAF/AF Champion Jointing Sheets. These products are utilized in wide range of industries and like Chemical, Petro-Chemical, Defence, Food Processing, Aerospace, Pharmaceutical and many more.

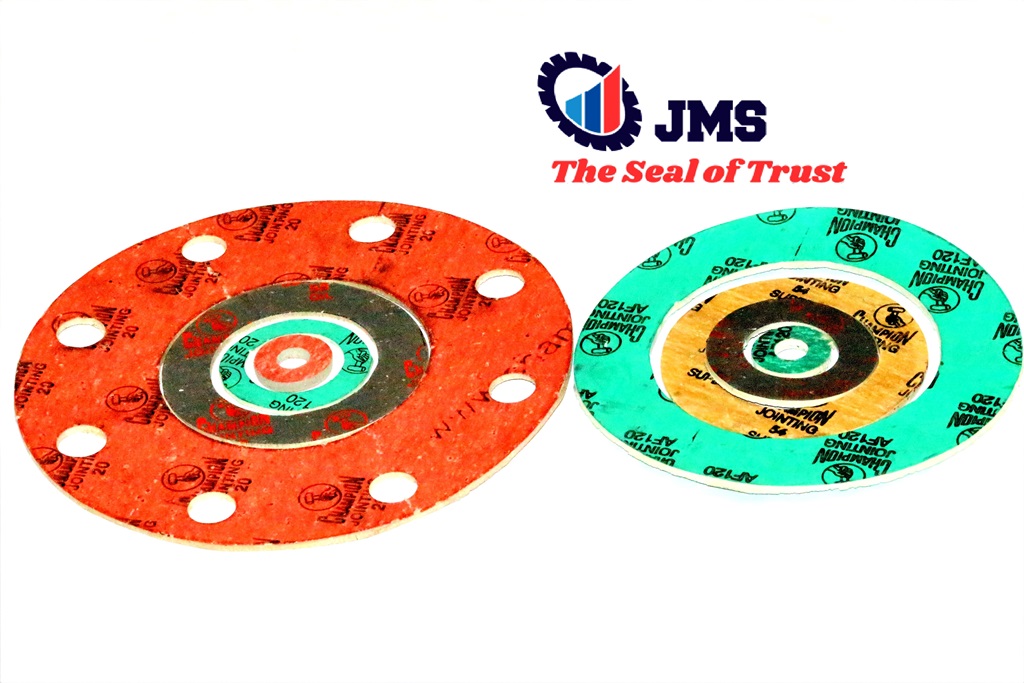

Champion CAF/Non Asbestos Gaskets are die cut or circle cut from compressed asbestos fibre / non asbestos jointings which are manufactured from carefully selected fibre intimately blended with suitable heat resistant binders etc. and vulcanised into sheets of homogenous compositions and uniform thickness. Champion CAF/Non Asbestos cut gasket seal is effected by yielding or flow of material into the imperfections of joint contact faces. In this way gasket provides an unbroken barrier of homogenous structure through which no pathway exist for escape of confined media.
Non-Metallic Gasket Manufacturer in India
Non-Metallic Gaskets – High-Performance Sealing Solutions
At Jain Mill Stores, we are dedicated to producing high-quality non-metallic gaskets tailored to fulfil a diverse array of industrial sealing requirements. Our gaskets are manufactured using top-grade materials and cutting-edge production techniques, ensuring consistent sealing performance across varying pressure and temperature scenarios. Complying with the rigorous standards set by ASME B16.21, our non-metallic gaskets offer a trustworthy solution for sectors that demand robust, high-performance sealing components.
What are non-metallic gaskets?
Non-metallic gaskets are constructed from flexible, soft materials such as aramid fibre, glass fibre, elastomer, Teflon (PTFE), and graphite. These materials are chosen for their durability and capacity to adapt to irregularities on flange surfaces, thereby guaranteeing a secure and efficient seal. In contrast to metallic or semi-metallic gaskets, non-metallic options are specifically designed for moderate pressure and temperature applications, making them particularly suitable for industries such as chemical processing, food and beverage, pharmaceuticals, and power generation.
At Jain Mill Stores, we produce non-metallic gaskets from a selection of high-performance materials, including:
- Aramid Fiber – Renowned for its strength and thermal resistance.
- Glass Fiber – Offers exceptional thermal stability and chemical resistance.
- Elastomer – Provides flexibility and resistance to chemical deterioration.
- Teflon (PTFE) – Exhibits high resistance to chemicals and extreme temperatures.
- Graphite – Delivers outstanding sealing performance in high-temperature environments.
Our non-metallic gaskets are available in various shapes, sizes, and thicknesses to accommodate specific application needs, ensuring a dependable and enduring seal across a wide range of operating conditions.
Manufacturing standards and marking
All non-metallic gaskets produced by Jain Mill Stores adhere to the ASME B16.21 standards, which specify the types, sizes, materials, dimensions, tolerances, and markings for non-metallic flat gaskets. This compliance guarantees that our gaskets fulfil international quality and performance criteria.
Each gasket is meticulously marked to ensure full traceability and identification. The markings include the following details:
- Manufacturer’s name or trademark
- Material designation
- NPS (Nominal Pipe Size)
- Class (Pressure-Temperature Ratings)
- Thickness
- ASME B16.21 marking or tag
The NPS, accompanied by a dimensionless number, indicates the nominal pipe size as defined in ASME B36.10M and corresponds to the reference nominal diameter (DN) utilized in global standards. The class designation indicates the standard flange pressure-temperature ratings as outlined in the relevant flange specifications.
The various tolerances that are followed in Jain Mill Stores are as follows:
| CATEGORY | I.D | O.D |
| NPS 12 & smaller | ±1.5 mm (±0.06 in.) | +0.0, −1.5 mm (+0.0, −0.06 in.) |
| NPS 14 & larger | ±3.0 mm (±0.12 in.) | +0.0, −3.0 mm (+0.0, −0.12 in.) |
| Bolt circle | ±1.5 mm (±0.06 in.) | – |
| Center to center of adj. holes | ±1.0 mm (±0.03 in.) | – |
Our Association with CHAMPION GASKET
Champion Seals India Pvt Ltd was founded in the year 1959 in Bombay, India by Mr. Keki Jehangir Palia .Champion Brand has distinguished itself for its expertise and specialization Industrial segment gaskets, commercial Seals and transmission Products, in full respect of its mission they believe in providing total customer satisfaction.
Jain Mill Stores associated with “CHAMPION” Gasket in the year 1995. Today we are one of the leading Authorised Channel Partners of Champion Gasket in the Country.
Use of Champion Gasket
Used in the high temperature and high pressure lines. For the equipment in saturated vapor, super hot vapor, gas, air, gas, ammonia alkali, and inert gases and other mediums etc. And used as sealing material in the joints of pipeline.You can also find gaskets used to seal boilers and fuel tanks. In all cases the gasket prevents leakage of liquids and gases between the component parts.
Prime Distributors Of Champion Gasket

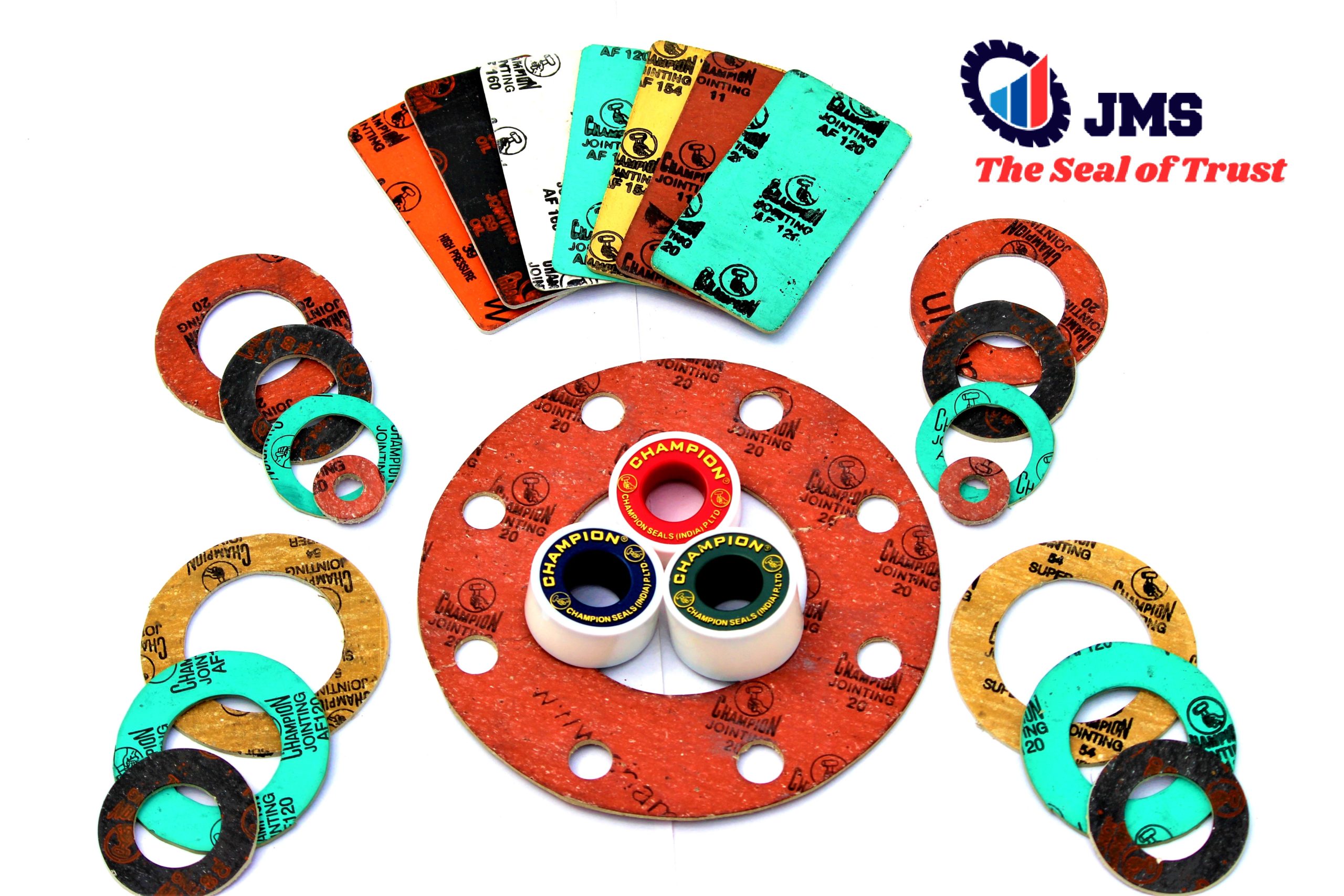

Our Company manufacture and Supply variety of Champion Gasket Products including Spiral wound Gaskets, Teflon Gaskets, PTFE Envelope Gaskets,Teflon Tape,Asbestos Rope,PTFE Gaskets, Teflon Sheets, Seals Rings and various Other Products.
Historycally compressed Asbestos Fibre (CAF) has been material of choice for “SOFT” gasket materials. It is regarded as easy to use and very tolerant of abuse, for which it was recognized as very forgivings, it is used to seals almost all applications grades available with us, W1, W2, W3, B/S, O/1, O/2. A/1 metallic and non-metallic materials.
We offer Full array of services To Deliver One Stop reliability to counter all your needs. From Management to Production we are committed to excellence at all levels of services, operations and wide range of Industrial applications.
Our Company supply various products to many industries and countries all over Hyderabad. We have extensive experience of working with Professionals and engineers to solve your problems, and to supply parts that meet accurate specifications. We manufacture all types of gaskets and seals, for a wide variety of conditions and environments.
Jain Mill Stores is unconditionally committed towards its customer’s satisfaction and success by consistently being transparent to establish mutual trust & understanding, ensuring timely delivery of all products as per customer’s need.
